How do I load a graphical map into the TauREX Software?

See video demonstration:

Or follow these steps.

1)   Click the tab page tabbed with theicon.

2)   Click the icon.

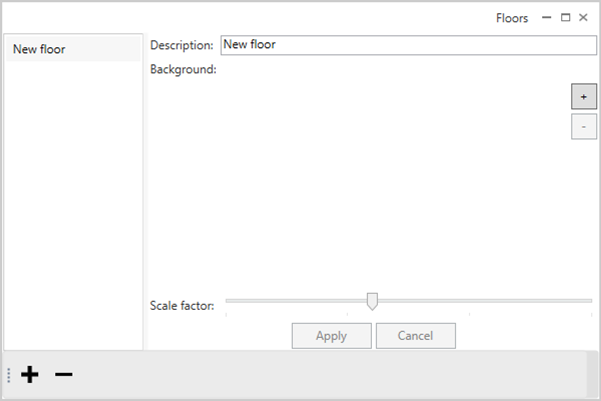

The “Floors” editor window appears:

-   Edit the “Description” field to change the name of the floor (e.g. first floor, basement and so on).

-   Click the icon in the “Background” area to import a floor plan image to be superimposed over the virtual floor.

-   Click the  icon in the “Background” area to cancel the imported floor plan image.

-   Click the  icon to add a new virtual floor to the floor list (leftmost panel).

-   Click theicon to cancel the selected virtual floor; you will be requested for confirmation.

-   Apply: saves the changes made.

-   Cancel: cancels the changes made; you will be asked for confirmation.

Close the window when finished.

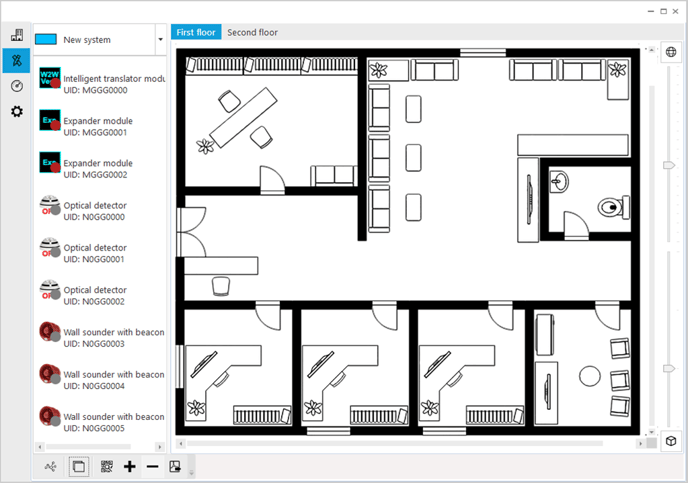

Floor editing produces results like the example:

above the central panel of thepage you have two selectable tab pages, each of them representing a floor in the installation site; you can now place the virtual devices onto them.
